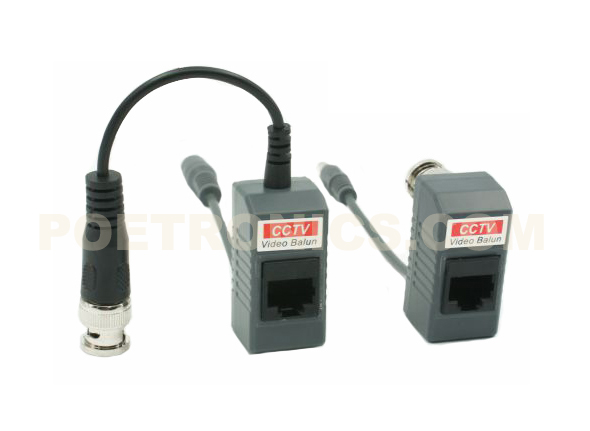

PVB-VP11E CCTV Enhanced One Channel Passive Video Transceiver (Power+Video)

● Model: PVB-VP11 (Power+Video)

● Passive Enhanced video transceiver

● Video frequency responsee: DC-6Mhz Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB typ 60dB typ;

● Interface: BNC-Male; DC Connector(Male & Female); UTP port(RJ45);

● Input/Output Impedance Coax,male BNC:75ΩUTP(Screwless) Terminal Block or UTP RJ45 Data Connector:100Ω;

● Wire type: One unshielded twisted-pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m);

● Interference Suppression, Noise Filtering, Surge/Lightning protection;

● No external power required;

● Transmission distance: Video 350-550m; Power 200-300m;

● Dimensions: 43*20*2.1mm; Weigth: 35g

● Operating Temperature/Humidity: -10 ~ +50℃; 0~95%
